Damaged Galaxy Z Fold6 Display or Central Crease Failure?
The Samsung Galaxy Z Fold6 relies on two distinct display assemblies: an outer cover display for quick interactions and a flexible inner display engineered to fold along a central hinge. While designed for durability, impact drops or pressure on the central fold can cause dark display marks or screen failure.
Establishing whether your device requires an inner screen assembly, an outer glass panel, or hinge/flex ribbon adjustment is an essential first step before considering device replacement.
At Terabyte Electronics (136 Kilburn High Road, London NW6 4JD), our approach follows a clear principle: Diagnose First. Differentiate Inner vs. Outer Screen Faults. Replace Affected Components. Prioritise Data Safety.
⚡ Quick Answer: Can a Damaged Samsung Galaxy Z Fold6 Screen Be Repaired?
Many Galaxy Z Fold6 screen issues—including black ink bleeding along the central fold, vertical lines, or touch failure—can be resolved by replacing the affected inner flexible display or outer cover screen. Diagnosis helps determine whether the fault is isolated to the display assembly or whether hinge, flex connection or related hardware requires further investigation.

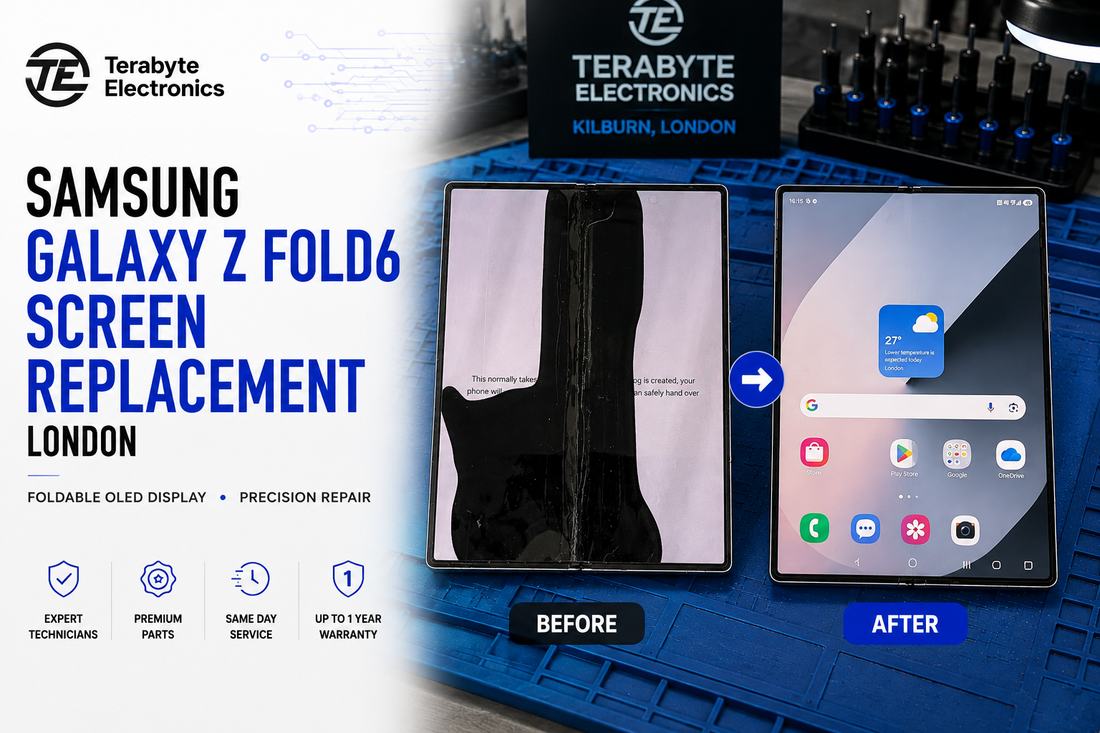

Real Repair at Terabyte Electronics: Galaxy Z Fold6 Workshop Walkthrough
Below is a real-world look at a Samsung Galaxy Z Fold6 inner screen replacement at our Kilburn workshop, following the device from initial diagnostic intake to completed repair:
Step 1: Diagnostic Intake & Visual Damage Inspection
- Device Intake: The Galaxy Z Fold6 arrived at our Kilburn workshop with extensive dark display damage running through the central fold area.
- Diagnostic Assessment: The device and foldable display were assessed to establish whether the visible fault was isolated to the inner display assembly or whether additional hardware required attention.
Step 2: Replacement Installation & Post-Repair Testing
- Assembly Replacement: After the display fault was confirmed, the damaged inner screen assembly was removed and a compatible replacement assembly was fitted.
- Post-Repair Check: Following reassembly, the replacement display was checked for image output, touch response, fitment and normal operation.
Galaxy Z Fold6 Display Faults We Diagnose & Repair
Foldable device symptoms vary depending on whether damage is isolated to the outer screen, inner flexible display, or internal flex connections:
| Observed Symptom | Possible Fault | Diagnostic Action |
|---|---|---|
| Black / Dark Area Along Crease | Possible inner foldable display damage | Diagnose inner display assembly; replace inner display where confirmed |
| Inner Screen Black | Inner display, connector/flex or related circuitry | Bench test display circuitry to isolate panel fault vs. flex connections |
| Coloured / Vertical Lines | Possible inner display or display-path fault | Diagnose display path; replace affected display panel where confirmed |
| Inner Touch Failure | Display assembly, connection or related hardware | Inspect ribbon connections and evaluate replacement display assembly |
| Cracked Outer Cover Glass | External cover glass damage | Assess cover display assembly and replace outer screen assembly |
| Doesn't Open Normally | Hinge, chassis or mechanical issue requiring inspection | Inspect hinge alignment and chassis mechanics prior to screen fitting |
Is It Screen Damage, Hinge Strain, or a Board-Level Fault?
Because foldable devices route signals across two chassis halves connected by flex cables running through a central hinge, display symptoms require careful isolation:
- Inner Display Panel Fault: The phone powers on and outer cover screen functions, but opening the device reveals dark spots, lines, or touch loss on the inner main screen. Solution: Inner screen replacement.
- Hinge Flex Ribbon Strain: Display cuts out or flickers only at specific folding angles, which may be associated with wear or strain on internal flex cables traversing the hinge. Solution: Hinge ribbon / display path diagnostics.
- Outer Cover Screen Fault: Physical cracks or touch issues restricted exclusively to the front exterior display. Solution: Outer cover screen assembly replacement.
- Possible Board-Level Display Fault: If neither display produces an image and the fault is not isolated to either screen assembly, further board-level and display-circuit diagnostics may be required. Solution: Board-level display circuit diagnostics.
Initial bench testing identifies these variables so you understand the fault before proceeding with repair.
Have a Damaged Samsung Galaxy Z Fold6 Needing Assessment?
Speak directly with our Kilburn repair team or message us on WhatsApp for diagnostic guidance.
Data-Conscious Samsung Fold Repair in London
A primary concern when booking a Samsung Fold6 screen repair is data safety. Screen replacement normally does not require replacing or erasing the device's internal storage. Terabyte follows a data-conscious repair process and prioritises preserving customer data throughout diagnostics and repair. We recommend maintaining a current backup whenever possible before hardware service.
Repair or Replace Your Galaxy Z Fold6?
Evaluating whether to repair your screen or replace the device depends on hardware condition and diagnostic results:
- Damage is localized to outer glass or inner flexible display panel.
- The main logic board, power delivery, and hinge chassis function correctly.
- You want to preserve stored device data without a system wipe.
- The diagnosed repair is technically viable and makes sense relative to replacing the device.
- Severe chassis crushing has fractured internal logic board layers across both halves.
- Extensive liquid corrosion has damaged main power rails and hinge flex connectors.
- Multiple major sub-systems require full replacement, making repair unviable.
How We Test a Galaxy Z Fold6 After Screen Replacement
Following an eligible screen replacement, the device is evaluated to verify operational functionality:
| Validation | What May Be Checked |
|---|---|
| Display Output | Screen checked for normal image output |
| Touch Response | Touch functionality checked after replacement |
| Screen Fitment | Replacement assembly checked after reassembly |
| Device Operation | General functionality checked following repair |
Note: The exact validation process depends on the device condition, reported fault and repair performed.
Why Choose Terabyte Electronics for Samsung Fold Repair in London?
- Diagnose Before Replacing: Investigate the reported fault before recommending repair or replacement.
- Foldable Display Experience: Evaluation of dual-screen assemblies, flexible display panels, and hinge mechanisms.
- Data Preservation Focus: Hardware modular repairs prioritize preserving customer data throughout the service.
- Electrical Diagnostics: Display power rails and inter-board flex paths can be investigated when symptoms suggest deeper faults.
- Whole-System Diagnosis: Assess wider device hardware when the screen may not be the root cause.
- London Workshop: Kilburn High Road location with pickup/delivery options across London.
