Damaged iPhone 17 Pro Display or Cracked Front Glass?
The iPhone 17 Pro features a Super Retina XDR OLED display engineered with slim bezels, high refresh rates, and integrated touch sensors. While designed for durability, high-impact drops can fracture the outer cover glass, damage the underlying OLED panel layer, or strain internal display connectors.
Given the premium value of flagship Apple devices, replacing the whole phone is often unnecessary. Establishing whether your device requires a straightforward display assembly replacement or deeper hardware intervention is the most practical first step.
At Terabyte Electronics (136 Kilburn High Road, London NW6 4JD), our approach follows a clear principle: Diagnose First. Confirm Display vs. Logic Board Faults. Replace Damaged Components. Prioritise Data Safety.
⚡ Quick Answer: Can a Damaged iPhone 17 Pro Screen Be Repaired?
Many iPhone 17 Pro display faults may require screen assembly replacement, but similar symptoms can also result from connector, power-delivery, impact or logic-board faults. Diagnosis confirms whether the display assembly or deeper hardware requires repair.
Real Repair at Terabyte Electronics: iPhone 17 Pro Workshop Walkthrough
Below is a real-world look at an iPhone 17 Pro display repair at our Kilburn workshop, following the device from initial diagnostic intake to final reassembly:
Step 1: Diagnostic Intake & Visual Damage Inspection

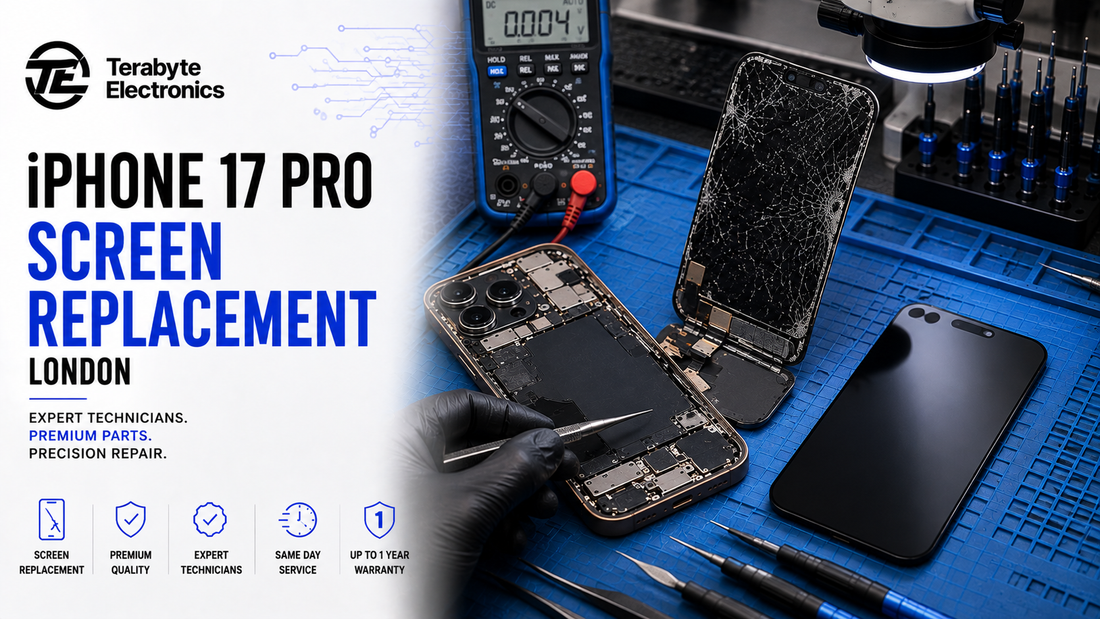

- Device Intake: The incoming iPhone 17 Pro arrives at our Kilburn bench exhibiting extensive spiderweb fracturing across the outer cover glass following an impact drop.
- Initial Functional Check: Technicians inspect whether the device still registers power, vibrations, or audio cues despite the visual screen glass damage.
- Enclosure Assessment: The titanium housing edges are examined for structural bends or corner impacts that could stress a newly installed replacement screen.
Step 2: Replacement Installation & Post-Repair Testing
- Assembly Replacement: After diagnosis confirmed the display fault, the damaged screen assembly was removed and a compatible replacement display was fitted.
- Post-Repair Check: After reassembly, the replacement display was checked for image output, touch response, fitment and normal operation.
iPhone 17 Pro Display Faults We Diagnose & Repair
Display damage presents in various ways depending on whether outer glass, digitizer layer, or internal OLED matrix was damaged:
| Observed Display Symptom | Possible Cause | Diagnostic Solution |
|---|---|---|
| Cracked Outer Glass (Display Working) | Glass layer fractures while touch and image rendering remain functional | Assess display damage and replace the display assembly where required |
| Black Screen / No Image (Phone Responds) | Internal OLED panel fracture or loose/damaged display flex connector | Bench test with test display to isolate panel fault vs. logic-board display circuitry |
| Vertical Green, White or Pink Lines | Possible display panel, connector or display-circuit fault | Diagnose display path; replace display assembly where confirmed |
| Unresponsive or Ghost Touch | Digitizer layer failure, flex ribbon strain, or connector pin misalignment | Inspect ribbon connectors and evaluate replacement screen assembly |
| Screen Flickering or Strobe Effect | Possible OLED assembly, connector or display power/circuit fault | Test display assembly and related circuitry |
Is It Screen Damage or a Deeper Hardware Fault?
A non-functioning display does not always mean the screen panel itself is the only issue. High impacts or liquid contact can affect internal system components:
-
Screen Assembly Fault: The phone powers on, vibrates, or sounds notifications, but the display remains dark, line-streaked, or unresponsive. Solution: OLED display assembly replacement.
-
Logic Board Display Fault: A replacement test display is attached, but the screen receives no power or fails to render graphics due to damaged board components. Solution: Logic board micro-soldering diagnostics.
- Chassis / Frame Strain: A bent titanium enclosure exerts pressure on new display glass, risking premature cracking. Solution: Frame realignment or housing assessment.
Initial bench testing helps verify these factors so you understand the fault before committing to repair.
Have a Damaged iPhone 17 Pro Needing Diagnostic Evaluation?
Speak directly with our Kilburn repair team or message us on WhatsApp for diagnostic guidance.
Data-Conscious iPhone Repair in London
A primary concern when booking an iPhone screen repair is data safety. Screen replacement normally does not require replacing or erasing the iPhone's internal storage. Terabyte follows a data-conscious repair process and prioritises preserving customer data throughout diagnostics and repair. We recommend maintaining a current backup whenever possible before any hardware service.
Repair or Replace Your iPhone 17 Pro?
Evaluating whether to repair your screen or replace the device depends on hardware condition and diagnostic results:
- Faults are localized to outer glass, digitizer layer, or OLED matrix.
- The main logic board and power delivery function correctly.
- You want to preserve stored device data without a system wipe.
- Repair cost is significantly lower than purchasing a replacement phone.
- Severe chassis crushing has fractured internal logic board layers.
- Extensive corrosion from liquid submersion has compromised main power rails.
- Multiple major sub-systems require full replacement, making repair unviable.
How We Test an iPhone 17 Pro After Screen Replacement
Following an eligible screen replacement, the device is evaluated to verify operational functionality:
| Validation | What May Be Checked |
|---|---|
| Touch Response | Multi-touch tracking and edge-to-edge digitizer response |
| Display Quality | Color accuracy, brightness levels, and visual panel checking |
| Sensor Operation | Proximity sensor call shutoff and ambient light response where applicable |
| Front Camera & Earpiece | Front camera clarity, lens alignment, and earpiece speaker audio |
| Fitment & Sealing | Enclosure seating, glass alignment, and frame fitment inspection |
Note: The exact validation process depends on the device condition, reported fault and repair performed.
Why Choose Terabyte Electronics for iPhone Screen Repair in London?
- Diagnose Before Replacing: Investigate the reported fault before recommending repair or replacement.
- Component-Level Approach: Assess display assembly and board-level faults to determine technical viability.
- Data Preservation Focus: Hardware modular repairs prioritize preserving customer data throughout the service.
- Electrical Diagnostics: Display power and device behaviour can be investigated when symptoms suggest the screen may not be the only fault.
- Whole-System Diagnosis: Assess wider device hardware when the screen may not be the root cause.
- London Workshop: Kilburn High Road location with pickup/delivery options across London.
